快速導讀：電動葫蘆 鋼絲繩電動葫蘆 防爆電動葫蘆 多功能電動提升機 建筑爬架電動葫蘆

精品環鏈電動葫蘆

5噸DLER環鏈電動葫蘆掛鉤式

5噸DLER環鏈電動葫蘆掛鉤式

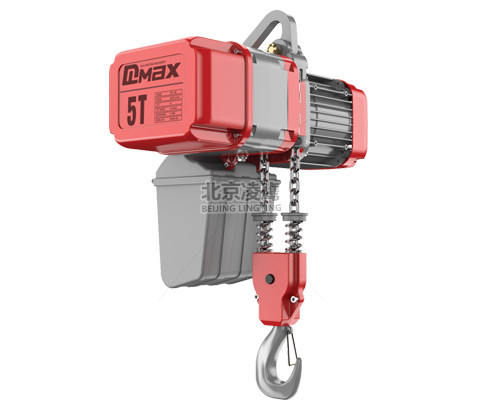

產品名稱：5噸DLER環鏈電動葫蘆掛鉤式

產品分類：精品環鏈電動葫蘆

產品描述：

?

拋丸機專用環鏈電動葫蘆技術優勢：擺線傳動更精密? ? 雙限位設計更可靠? ?離合器前置電機更安全? ? 核心專利13項

?

?

詳細介紹：

?

參數表：

MODEL型號

DLEK 05-02

DLEK 1/DLEK2

DLEK3

DLEK4

Maximum load 最大載荷(≤6m/h)

5.5t

Rated load(Ton) 額定載荷(≤6m/h)

5t

Lifting speed(m/min)起升速度

單速2.7

雙速0.8/2.7

變頻0.4~2.7

Motor Power(kw)電機功率

單速3

雙速1.1/3

變頻3

Rotation speed(r/min)轉速

單速1440

雙速430/1440

變頻200~1440

Motor insulation class 電機絕緣等級

F

Frequency(Hz)頻率

50

Power Supply 工作電壓

Ac 380V ?L1 ?L2 ?L3 〧

Control Volatage 控制電壓

AC36V

NO.of Load Chain鏈條回數

2

Spec.of Load Chain 鏈條規格

11.2x34

Working level 工作級別

M5

?

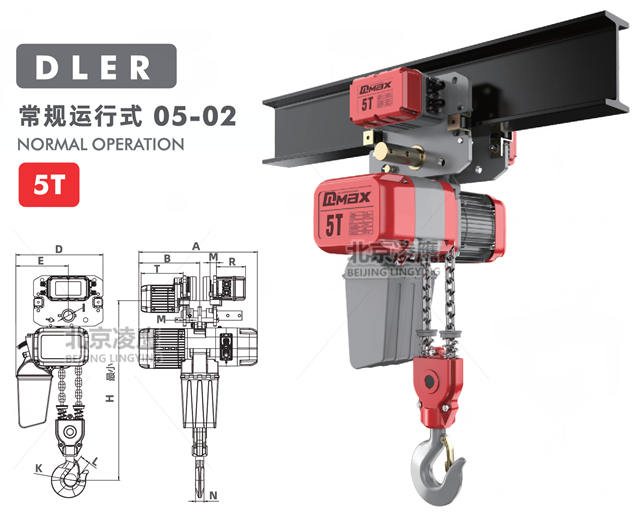

長度

H

675

A

695

B

350

D

420

E

307

I

55

M

28

N

44

K

60

L

48

?
