快速導讀：電動葫蘆 鋼絲繩電動葫蘆 防爆電動葫蘆 多功能電動提升機 建筑爬架電動葫蘆

精品環鏈電動葫蘆

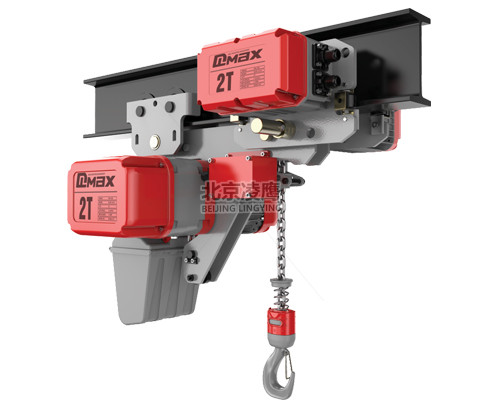

2噸單鏈超低運行式DLER環鏈電動葫蘆

2噸單鏈超低運行式DLER環鏈電動葫蘆

產品名稱：2噸單鏈超低運行式DLER環鏈電動葫蘆

產品分類：精品環鏈電動葫蘆

產品描述：

?

拋丸機專用環鏈電動葫蘆技術優勢：擺線傳動更精密? ? 雙限位設計更可靠? ?離合器前置電機更安全? ? 核心專利13項

?

詳細介紹：

?

?

參數表：

MODEL型號

DLER 02-01

DLER 1/DLER2

DLER3

DLER4

Maximum load 最大載荷(≤6m/h)

2.3t

Rated load(Ton) 額定載荷(≤6m/h)

2t

Lifting speed(m/min)起升速度

單速6.8

雙速2.2/6.8

變頻0.8~6.8

Lifting motor power(kw)起升電機功率

單速3

雙速1.1/3

變頻3

Lifting motor speed(r/min)起升電機轉速

單速1440

雙速430/1440

變頻200~1440

Running speed (m/min)運行速度

單速11

雙速3.6/11

變頻1.5~12

Running motor power(kw)運行電機轉速

單速1440

雙速430/1440

變頻200~1440

Running motor power(kw)運行電機功率

單速0.5

雙速0.2/0.5

變頻0.5

Motor insulation class 電機絕緣等級

F

Frequency(Hz)頻率

50

Power Supply 工作電壓

Ac 380V ?L1 ?L2 ?L3 〧

Control Volatage 控制電壓

AC36V

NO.of Load Chain 鏈條回數

1

Spec.of Load Chain 鏈條規格

10x30

Working level 工作級別

M5

I-Beam(mm)工字鋼底面

82-178

?

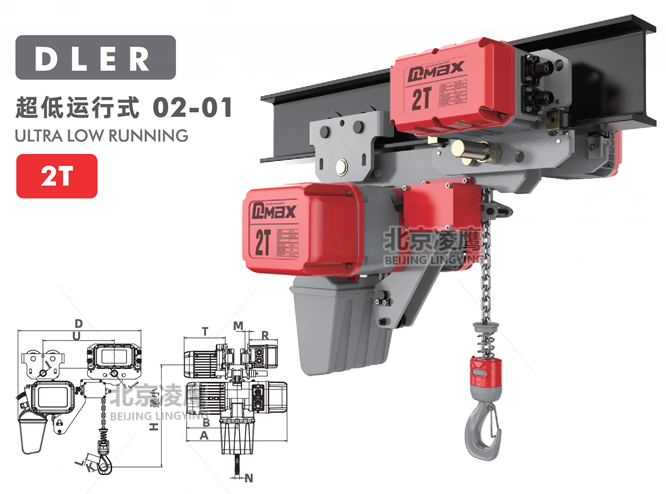

長度

H

470

A

681

B

350

D

865

U

514

I

31.5

J

31.5

M

28

N

35

K

52

L

42

T

242

R

167

?

?

?
